A four-wheel drive tractor powers both the front and rear axles, giving it more ways to use available ground grip. For a farm choosing between 2WD and 4WD, the deciding factors are the jobs, soil conditions and loads the tractor will handle. Regular loader work, wet access tracks and heavy cultivation make a stronger case for four-wheel drive than mowing on firm, level ground.
What is a four-wheel drive tractor?

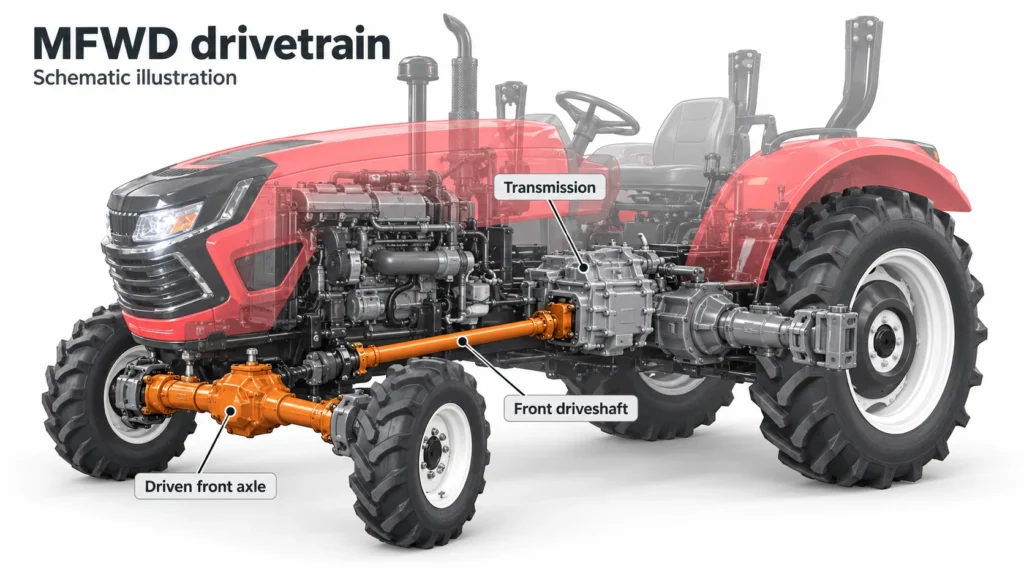

On most compact and utility tractors, four-wheel drive uses a powered, steerable front axle on a rigid frame. A driveshaft and gears transfer power from the transmission to the front axle. The front tires are usually smaller than the rear tires.
This layout is commonly called mechanical front-wheel drive (MFWD) or front-wheel assist (FWA). Depending on the model, the operator selects front drive with a lever or switch, or an automatic system controls engagement.
Driving the front axle helps the tractor turn engine power into pulling effort when the rear tires alone lack grip. It does not increase engine horsepower. Tire choice, axle loading and ground conditions still determine how much useful traction the machine can develop.

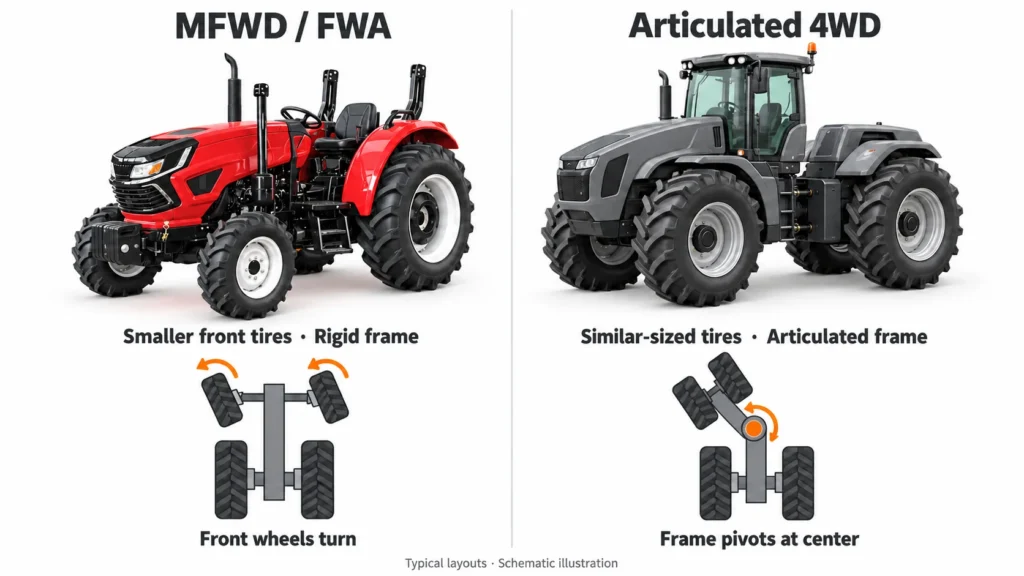

What is the difference between a 4WD and an MFWD tractor?
MFWD describes a particular drive layout. The broader label 4WD appears on both front-wheel-assist utility tractors and large articulated tractors. Check the machine’s construction as well as the wording in its listing.
| Feature | Typical MFWD utility tractor | Typical articulated 4WD tractor |
|---|---|---|
| Frame and steering | Rigid frame; front wheels steer | Steering through a central frame joint |
| Tires | Smaller front tires and larger rear tires | Similar-sized tires front and rear |
| Front drive | Selectable or automatically controlled, depending on model | Both axles powered; controls depend on model |
| Main role | Mixed farm work, loaders and mounted implements | High-draft work over larger fields |
Tire sizes are a useful clue, but the frame, steering system and axle description establish which layout you are buying.
For example, the TQ-804 product sheet lists 4WD with 7.5-16 front tires and 11.2-28 rear tires. When comparing a customized version, use the tire combination and drive configuration confirmed for that order.
When does a farm need a four-wheel drive tractor?
Four-wheel drive becomes more valuable when limited grip repeatedly interrupts essential work. Consider how often each situation occurs and whether the job can wait for better ground conditions.
Front loader work
A loaded bucket or fork attachment carries weight ahead of the front axle, reducing the weight carried by the rear wheels. On a 2WD tractor, those rear wheels still provide all the driving force. Front-wheel assist lets the front tires contribute, which is useful when entering a loose material pile or backing away with a load.
If the tractor will regularly move manure, soil, feed or pallets, assess the loader package early in the purchase. Include the attachment, expected load and required rear ballast. Loader attachments and pallet forks also need the correct mounting interface.
Four-wheel drive helps with traction; the matched tractor-and-loader specifications determine lifting limits.
Wet, soft or sloped ground
Wet tracks, cultivated soil and soft field entrances are common places where rear-wheel traction becomes a constraint. A driven front axle can contribute pulling effort while the front tires have ground to grip. Deep ruts and ground that cannot support the tractor remain problems even with both axles driven.
On slopes, grip and stability need separate consideration. The UK Health and Safety Executive’s slope guidance identifies ground conditions, gradient, attachments and load as factors in overturning risk. Four-wheel drive does not make an unsuitable slope safe. Use appropriate rollover protection and the seat belt, and follow the machine’s slope and load instructions. Wet conditions can make a previously usable route unsafe.
Heavy pulling and tillage
Plowing and other draft work require the tires to transmit substantial force into the soil. If the wheels repeatedly spin while the engine still has power available, traction may be the limiting factor. MFWD can spread that work across both axles.
The University of Kentucky’s ballast and tire inflation guidance explains that too little weight on a powered axle causes excessive slip, while too much strains the driveline. Tire pressure and ballast therefore need to suit the tractor and implement.
A PTO-driven rotary tiller adds another requirement: the tractor must supply the right PTO power and speed, hitch capacity and connections. Four-wheel drive helps the tractor move through the field; it does not establish compatibility with every tiller. Match plows, harrows and other tillage implements to the complete tractor specification.
When 2WD may be enough
A farm working mainly on firm, level ground may have less need for front-wheel assist. Mowing, light hauling and suitable PTO work can be practical 2WD tasks when traction is adequate.
Compare the extra purchase and upkeep costs with how often additional grip matters. A tractor used for loader work every week faces a different requirement from one that can postpone an occasional job until the ground dries. Include loaded return routes, field entrances and seasonal conditions in that comparison.
Can a four-wheel drive tractor work in a paddy field?
A four-wheel drive tractor can be configured for paddy work, but the complete setup matters. Driving both axles helps use available grip; the wheel arrangement, ground support and protection against water ingress determine whether a particular configuration suits the field.
TONGQU supports customized tractor configurations, including paddy-wheel options for utility models. The wheel set should be matched to the selected tractor and intended work. Paddy wheels alone do not establish the machine’s water-ingress protection or permitted operating conditions.
Before specifying a paddy setup, describe the soil, expected water depth, access route and implement. Confirm the wheel arrangement, axle and transmission suitability, and the operating and maintenance requirements for those conditions. For prolonged flooded-field use, include any applicable water-ingress test documentation in that review. Wet-track travel and sustained puddling should be treated as different applications.
What does four-wheel drive cost in wear, turning and front-axle load?
Tire matching and front-wheel lead
On many MFWD tractors, the front axle’s gearing and tire rolling circumference give the front wheels a small theoretical travel advantage over the rear wheels. This is front-wheel lead.
Firestone’s technical explanation of lead shows why tire wear, inflation pressure and replacement tire construction can change that relationship. Even the same nominal tire size can have a different rolling circumference.
Use a front-and-rear tire combination approved for the tractor. For a custom wheel package, confirm the pairing and compatibility before ordering replacements.
Engagement and turning
Manually selected, part-time MFWD can place additional stress on the driveline when used on high-grip surfaces that prevent the tires from accommodating the front-to-rear travel difference. Use the engagement procedure and transport mode specified in the operator’s manual.
Some systems include automatic engagement or brake-assist functions, as shown in MFWD operator instructions. Confirm which modes the supplied tractor provides.
Check turning clearance on the actual tire and wheel setting. For narrow sheds, gates or headlands, compare the stated turning circle and the conditions used to measure it.
Loader loads and ballast
The loader, attachment and payload all affect axle loading. Added traction does not raise the front axle’s load rating.
Rear ballast must follow the matched tractor-and-loader instructions. A three-point ballast box, wheel weights and liquid-filled tires affect weight distribution differently; they are not automatic substitutes for one another. A loader manual’s ballast guidance explains why hitch-mounted ballast may be required to protect the front axle.
Confirm the required ballast arrangement and axle limits before loader work.
What should you check before buying a four-wheel drive tractor?
Compare complete working configurations. A lower-priced tractor with different tires, no suitable loader or an incomplete ballast package may not meet the same job requirements.
- Drive system and controls. Confirm the front-drive layout, engagement method and operating instructions. You should know how the supplied system is used in field work and transport.
- Tires and custom options. Record the final front-and-rear tire or wheel combination, wheel setting and overall dimensions. For a paddy-wheel package, include the intended field conditions in the configuration review.
- Loader and ballast. Specify the loader, attachment, intended material and required working height. Obtain the applicable load limits and rear-ballast requirements for that combination.
- Maneuvering space. Check width, height and turning circle against your narrowest access points. Compare turning figures measured on the same basis, including tire setup and any use of steering brakes.
- Implement compatibility. Confirm PTO power, speed and shaft connection, hitch category, lift capacity and hydraulic requirements. Engine horsepower alone is not enough to match an implement.
- Delivery and condition. Check that the quotation, machine identification, fitted equipment and manuals agree. Request a pre-delivery function check of front drive. For a used tractor, have a qualified mechanic inspect the driveline, front axle and engagement system. For imports, confirm the engine and whole-machine documents required for the destination market.
The TONGQU utility tractor range provides base models for comparison, with custom configurations available around the intended application. Keep the agreed options and final specifications together in the order so that tire, implement and loader decisions remain consistent.
To discuss a configuration, contact TONGQU with your main jobs, ground conditions, implements and destination country. Include loader loads or paddy-field requirements where relevant, so the quotation covers the working package you need.
Frequently Asked Questions
Can I fit larger tires to an MFWD tractor?
Use a front-and-rear combination approved for the tractor. Larger tires change rolling circumference and can alter front-wheel lead. Check the wheel package’s gearing compatibility and clearance before choosing a different size.
What should I check on a used 4WD tractor?
Have a qualified mechanic inspect the front axle, driveline, tire pairing and engagement system, and verify that the front wheels receive drive. A fitted driveshaft or a moving control lever does not prove the system works under power.
Can I order a tractor and implements as one package?
Yes. TONGQU can supply a customized utility tractor and implement package. Specify the intended jobs and any existing implements. Confirm the wheel setup, PTO, hitch, hydraulic connections and loader ballast together in the final quotation.
